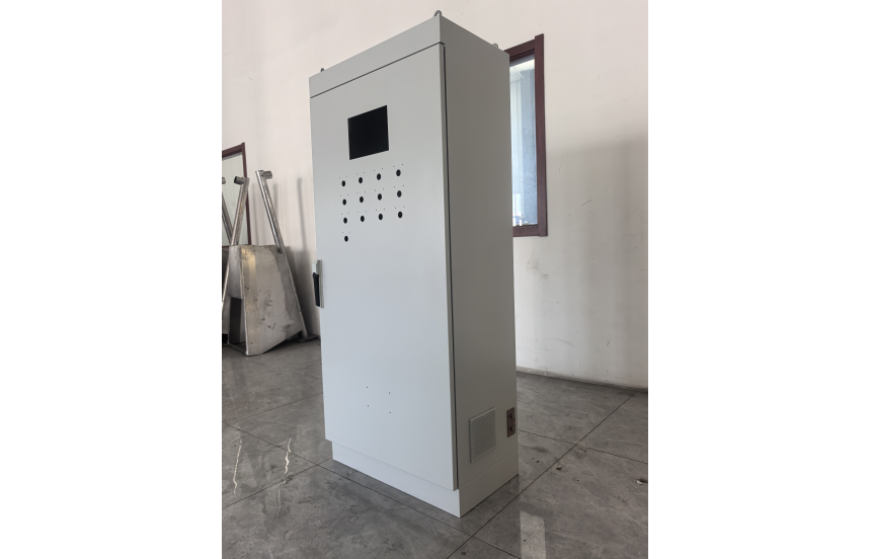

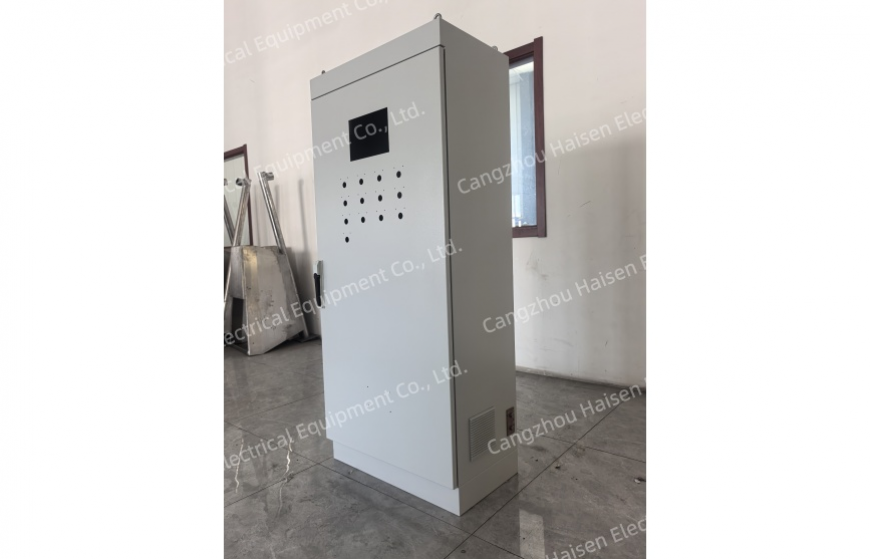

I. Floor-Standing Electrical Control Cabinet

Product Overview

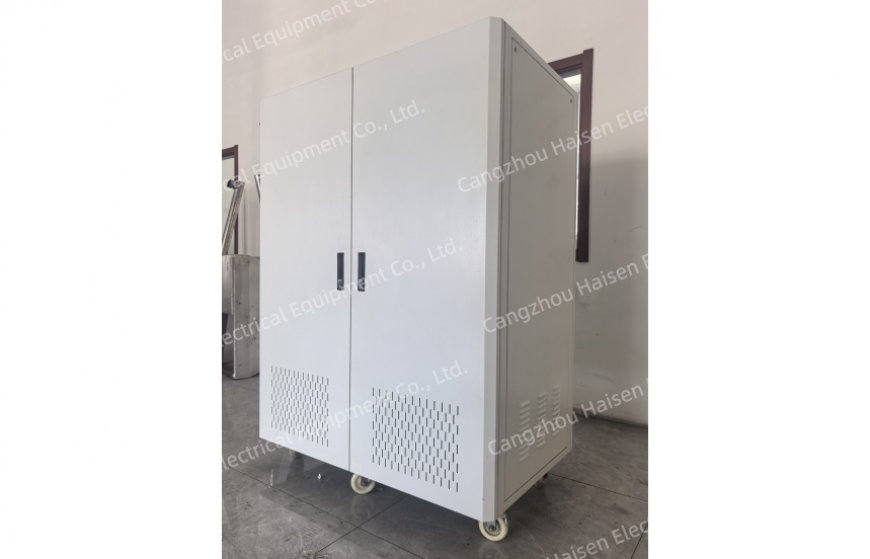

A floor-standing electrical control cabinet is an electrical control device installed directly on a ground foundation. It is commonly used in construction sites, factory workshops, commercial buildings, and similar locations, serving as a terminal device for power distribution, lighting distribution, or motor control. With larger overall dimensions and more comprehensive capacity and configuration options, it functions as a control hub connecting upstream and downstream systems within the power distribution network.

Structure and Features

1. Sturdy Construction with High Load-Bearing Capacity

The enclosure is manufactured from high-quality cold-rolled steel sheets through bending and angle steel welding. The sheet thickness can be customized according to customer requirements. The robust structure is capable of withstanding significant mechanical impact and external forces. The floor-standing installation method requires sufficient structural strength to support the weight of the internal components.

2. Flexible Installation Methods

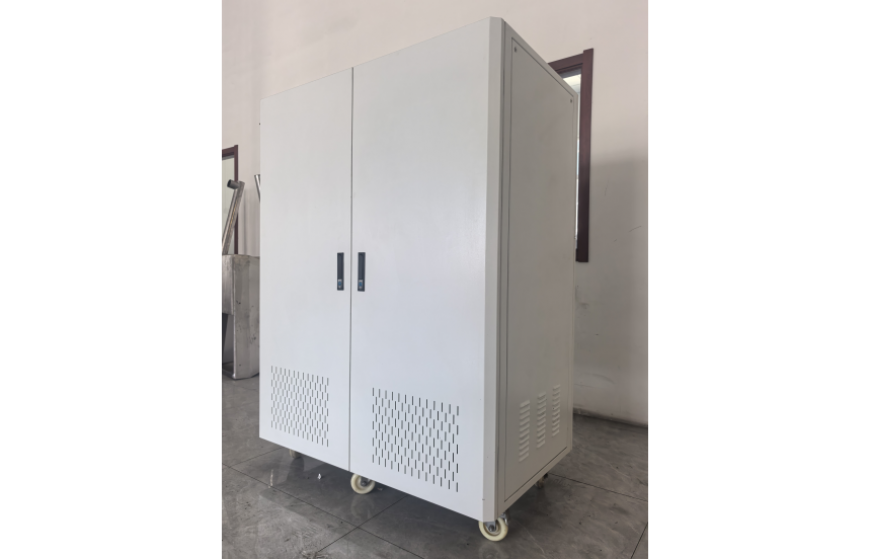

Floor-standing electrical control cabinets can be placed directly on the ground or mounted on foundation channels. They are typically installed against walls, with a front-opening single-door design for easy routine inspection and maintenance. Some models are equipped with bases and casters for rapid positioning and mobility.

3. Reliable Protection Performance

The enclosure surface is treated through phosphating and electrostatic powder coating processes, providing excellent corrosion resistance and impact resistance. Some models feature an arc-shaped rain deflector at the front of the door, which, combined with thickened door edges, creates an effective sealing effect to channel away and block rainwater—making them suitable for outdoor or semi-outdoor environments. The protection rating generally reaches IP54 or higher.

4. Clear Internal Layout for Easy Maintenance

Once the door is opened, all internal equipment is fully exposed for convenient inspection and maintenance. The enclosure is equipped with grounding blocks to effectively dissipate static electricity and stabilize voltage fluctuations, enhancing electrical safety. Internal components such as air circuit breakers, fuses, contactors, and thermal relays can be installed to meet various application requirements, including power distribution, motor control, and pump control.

Application Scenarios

• Temporary power supply for construction sites and fire protection operations

• Power distribution and lighting distribution in industrial and mining enterprises

• Distribution control at power plants, substations, and similar facilities

• Pump control, fan control, and dual-power transfer switching
