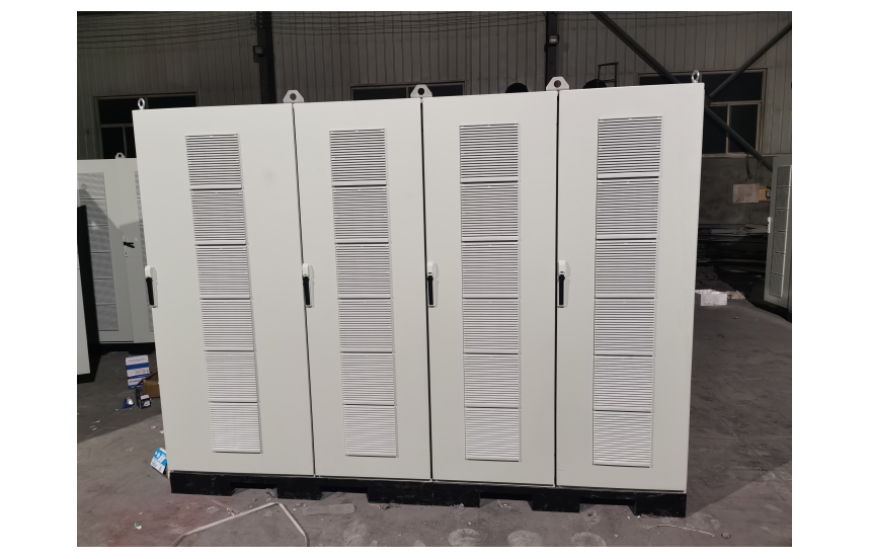

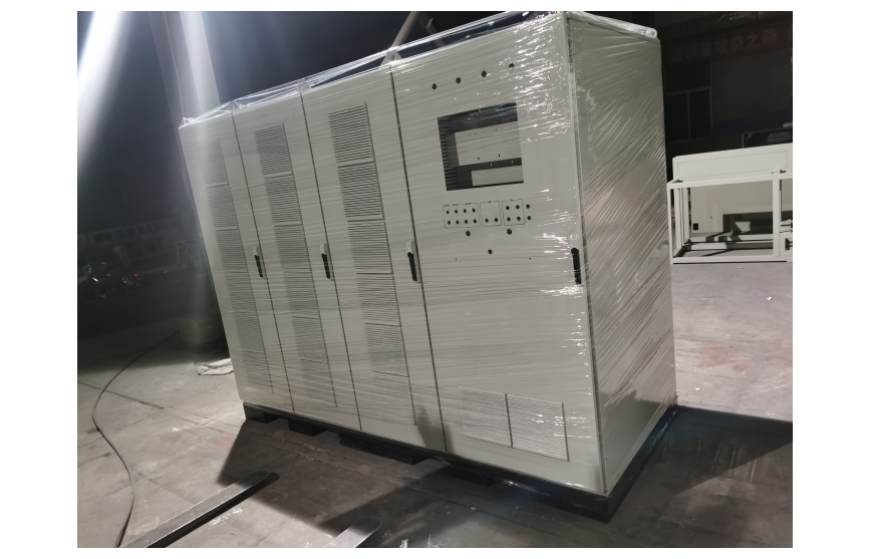

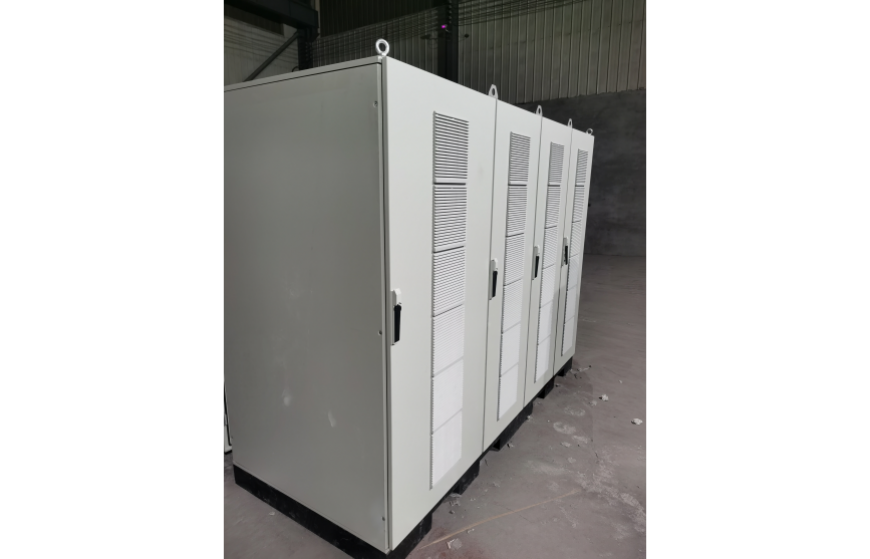

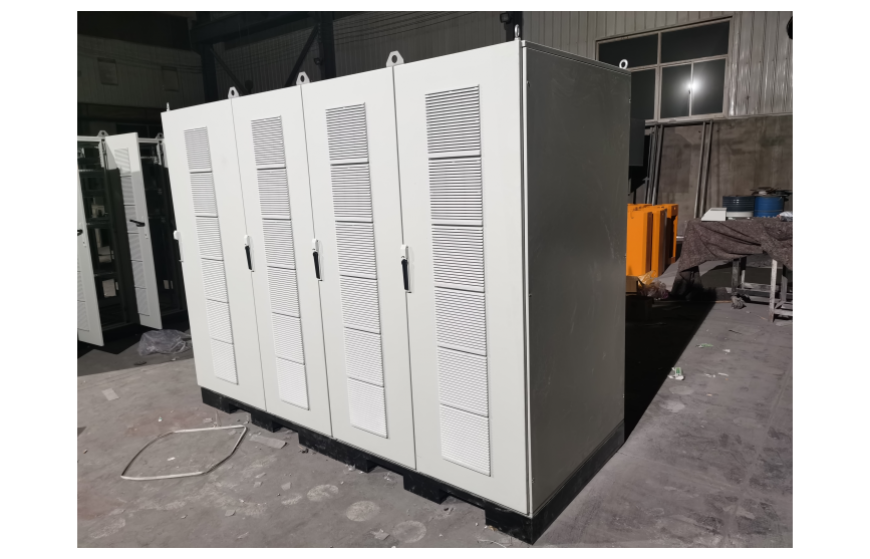

Product Overview

The modular freestanding electrical control cabinet is an independent electrical control device designed with standardized, serialized modular architecture. Its core strengths lie in its modular structure, high protection rating, and flexible combination options, making it one of the mainstream choices in industrial automation and building power distribution.

Structure and Features

1. Modular Design for Flexible Expansion

Adopting a modular structure, the internal mounting holes are arranged according to standard module spacing, compatible with various DIN rails, mounting plates, and components. Users can flexibly configure switches, circuit breakers, contactors, and other components based on actual requirements, enabling independent control of multiple circuits. When power demand changes, modules can be added or removed directly without replacing the entire control cabinet, reducing retrofit costs and downtime.

2. High Protection Rating for Harsh Environments

The enclosure is manufactured from high-quality cold-rolled steel sheets (304 stainless steel optional), with sheet thickness customizable to customer requirements. The surface is treated with phosphate primer and powder coating, typically in RAL7032 or RAL7035 textured colors. The cabinet door is equipped with sealing strips, achieving protection ratings up to IP56 or even IP66, effectively resisting dust, moisture, and water spray ingress—making it suitable for humid or dusty environments.

3. Excellent Cooling and Sealing Design

The cabinet opening features a multi-layered folded protective channel structure that both reinforces the enclosure and prevents dirt and water from entering when the door is open. Equipped with a double-bit lock cylinder and cam lock system, the cabinet offers convenient operation and high versatility. Various cooling solutions—including fans, air conditioners, and heat exchangers—can be optionally integrated to ensure internal equipment operates at optimal temperatures.

4. Convenient Installation and Maintenance

Mounting plates can be pre-wired outside the cabinet before being installed inside, improving assembly efficiency. The modular design enables rapid fault localization, and some modules support hot-swappable replacement, allowing faulty components to be replaced without powering down the system—minimizing impact on production operations.

5. Intelligent Control Compatibility

The modular freestanding electrical control cabinet supports seamless integration with intelligent control systems. It can accommodate smart sensors and communication modules to enable remote monitoring, scheduled control, energy consumption tracking, and other functions—meeting the intelligent management requirements of modern buildings and industrial facilities.

Application Scenarios

• Control systems for industrial automation production lines

• Terminal power distribution and lighting control in workshops and buildings

• Instrument junction boxes and control cabinets for small equipment

• Outdoor or humid environments with high protection rating requirements
